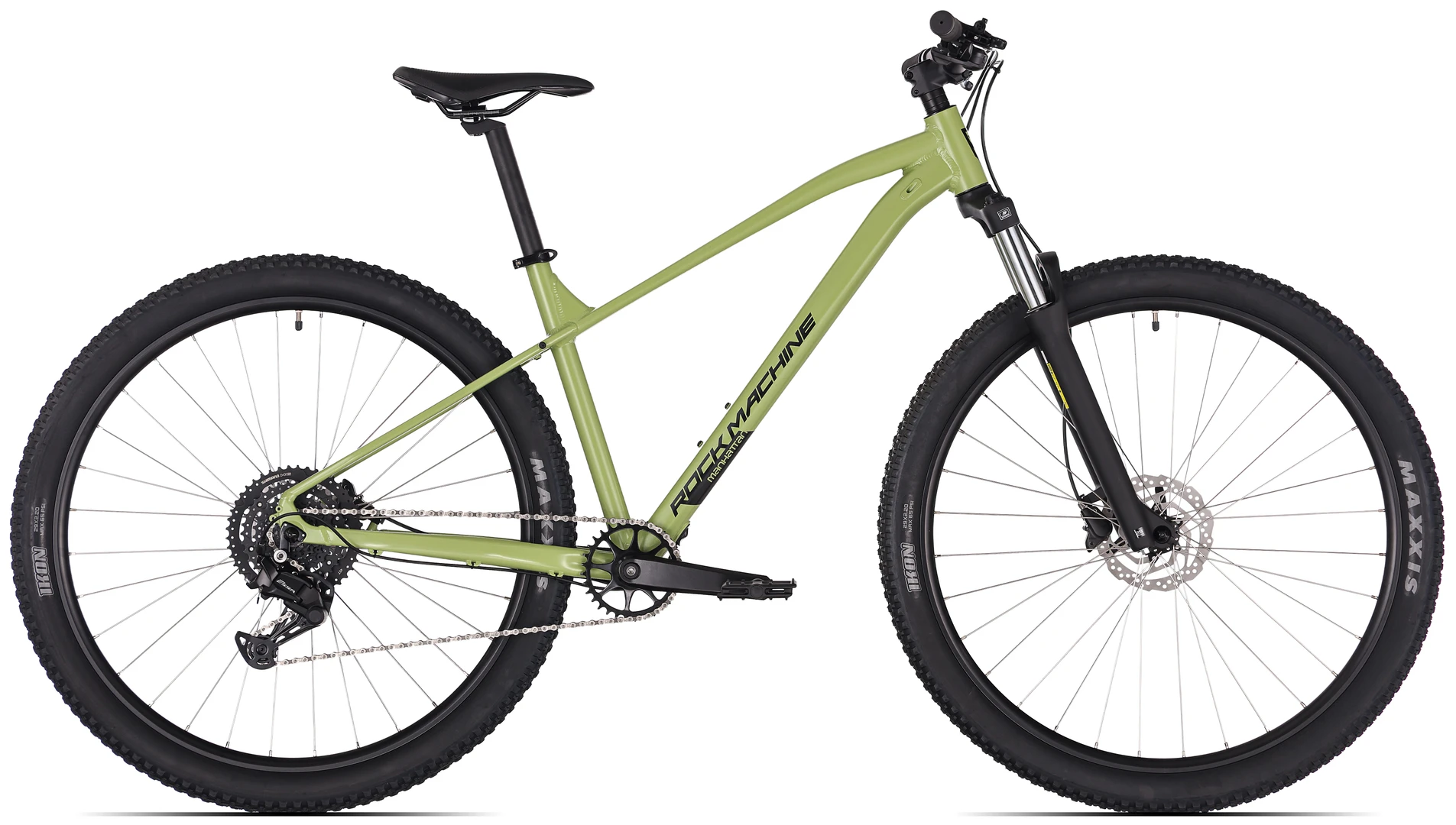

Rock Machine Manhattan 50
The new generation frame Manhattan with improved geometry will maximize comfort and control on and off-road. This model feels at home in easy terrain, but you can enjoy a technical trail as well as a trip on a cycle track on this bike thanks to its quick 29“ wheels. Sufficient range 2×7 drivetrain for any terrain, above-standard hydraulic disc brakes help you stop safely both on a dry and wet road. Suspension fork with lockout adds comfort.
| Veľkosť rámu |
L ,M ,S ,XL |
|---|---|
| Farba | , , |
| Odpruženie | , |
| Materiál rámu |
Alloy Al-6061 T6 Custom tubing, Fun Ride Geometry, Shark Spine EVO2 29er, BB BSA 73mm, OLD 135×9, Disc Brake Post Mount, Fender&Kickstand Ready Dropout, Replaceable RD Hanger, Inner Cable Routing |
| dojazd | |
| Brzdy | |
| Výrobca |
Rock Machine |
| Pohlavie | |
| Model |
Manhattan 50 |
| Modelová rada |
Manhattan |
| LOAD CAPACITY |
120 Kg |
| BOTTOM BRACKET |
THUN BSA 73/123mm |
| RD Hanger |
PS-DA1184 (013.0002.00138-244) |
| HEADSET |
FSA No.10 Semi-Cartrige, 1-1/8“ |
| SHIFTERS RIGHT |
SHIMANO SL-M315-8R RapidFire Plus, 8-speed |
| REAR DERAILLEUR |
SHIMANO ESSA RD-U2000 |
| CRANKSET |
ONE1 SAC40-018B32NS, 32T |
| CASSETTE |
Shimano HG300, 11-45T |
| CHAIN |
KMC Z8.3 |
| ROTOR FRONT |
SHIMANO SM-RT10, 160mm |
| ROTOR REAR |
SHIMANO SM-RT10, 160mm |
| HUB FRONT |
SHIMANO, HB-QC300 |
| HUB REAR |
SHIMANO, FH-QC300 |
| SPOKES |
SAPIM Leader, Stainless |
| RIMS |
Stars J25D |
| HANDLEBAR |
One Alloy, Comfy Riser, 31,8, W700, R30 |
| GRIPS |
VELO |
| STEM |
ONE, Alloy, 31,8mm, +3° |
| SADDLE |
Selle Royal Vivo |
| SEATPOST |
ONE, Alloy, 30.9mm |
| PEDALS |
VP Components 536, Low profile platform with reflector |
| BB DROP (mm) |
55 |
| SEAT TUBE LENGTH (mm) |
438 ,533 ,483 ,381 |
| EFFECTIVE TOP TUBE LENGTH (mm) |
602 ,640 ,623 ,584 |
| STACK HEIGHT (mm) |
609 ,637 ,618 ,602 |
| REACH (mm) |
419 ,442 ,434 ,407 |
| SEAT TUBE ANGLE |
73 |
| HEAD TUBE ANGLE |
69 |
| REAR CENTER (mm) |
447 |
| HEAD TUBE LENGTH (mm) |
110 ,140 ,120 ,100 |
| WHEELBASE (mm) |
1126 ,1161 ,1145 ,1106 |
| STEM (mm) |
45 |
| HANDLEBAR (mm) |
W700/R30 |
| CRANKSET (mm) |
170 |
| Seatpost (mm) |
350 ,400 ,300 |
