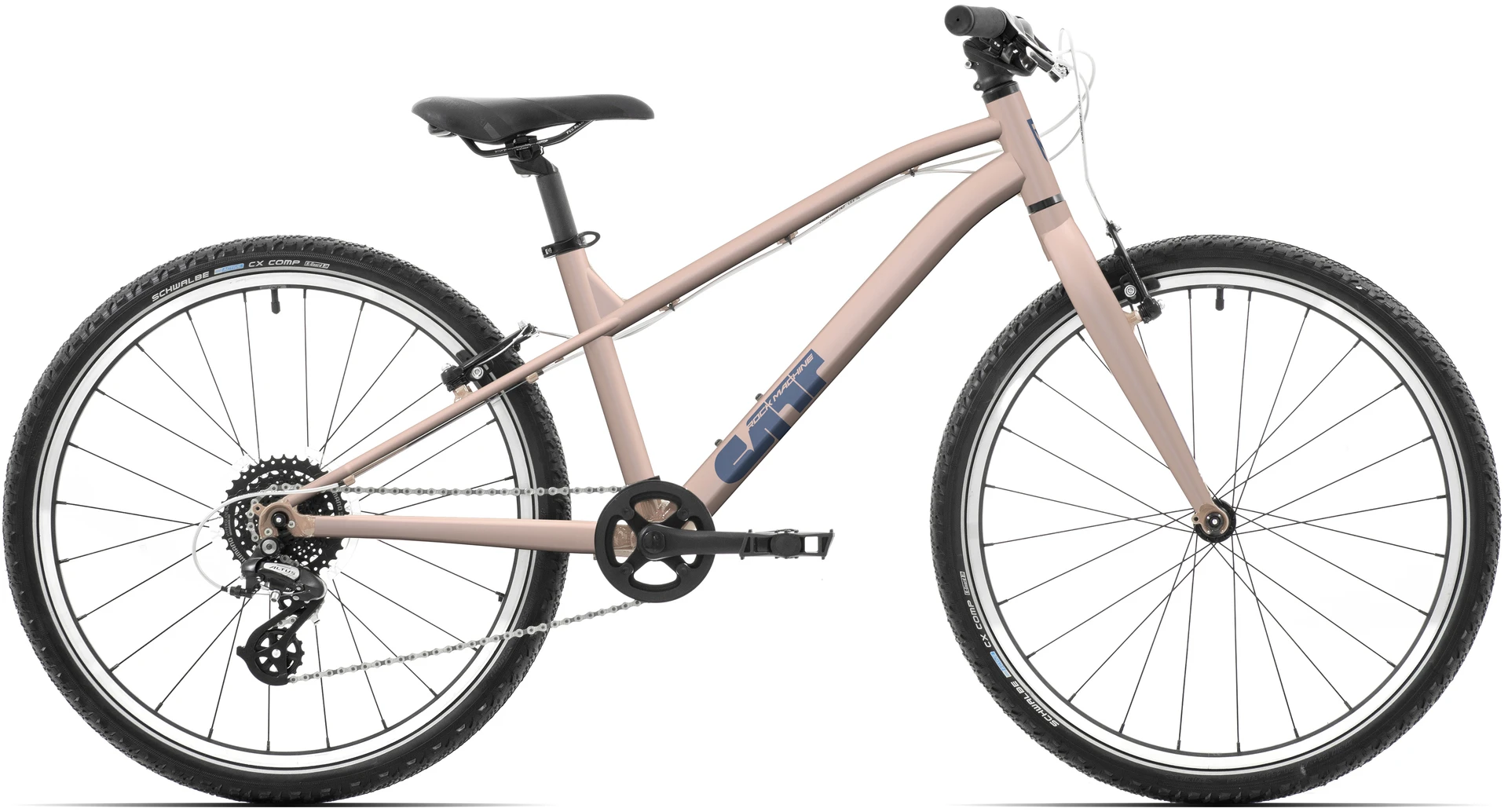

Rock Machine Catt Jr 24
A clean, lightweight junior bike made for everyday rides and easy progress. Catt Jr 24 feels simple to control on bike paths and around town, and the comfortable tyres help when the surface gets rougher. With intuitive Shimano Altus shifting and easy-to-use V-brakes, young riders get a calm, confidence-building ride from day one.
| Veľkosť rámu |
13" |
|---|---|
| Farba | |
| Materiál rámu |
Alloy Al-6061 T6 Custom tubing, Junior Trail Geometry, Shark Spine EVO, BB BSA 68mm, V-brake pivots, Fender Ready Dropout, Replaceable RD Hanger, Kickstand mount |
| dojazd | |
| Výrobca |
Rock Machine |
| Pohlavie | |
| Model |
Catt Jr 24 |
| Modelová rada |
Junior |
| WEIGHT |
9.90 kg |
| BOTTOM BRACKET |
Thun Ibex 120mm, BSA, shell 68mm |
| RD Hanger |
DA 1005 (013.0002.00110-244) |
| HEADSET |
CH290TBW, 1-1/8\ |
| SHIFTERS RIGHT |
SHIMANO SL-M315-8R RapidFire Plus, 8-speed |
| REAR DERAILLEUR |
SHIMANO ALTUS RD-M310-L |
| CRANKSET |
Wheel Top SXB4BL-MS, 28T |
| CASSETTE |
SHIMANO CS-HG31-8, 11-34T |
| CHAIN |
KMC Z8.3 |
| BRAKE LEVERS |
Tektro TS 325 |
| BRAKE FRONT |
TEKTRO J310 |
| BRAKE REAR |
TEKTRO J310 |
| HUB FRONT |
Alloy 6061 T6 Double Butted |
| HUB REAR |
ONE1 KTAZER, 24H, M10x130, CASSETE, QR Type |
| SPOKES |
Sapim Galvanized Black |
| TIRES |
Rubena Scylla 24 × 1,9" |
| RIMS |
Stars J19SD, 24H |
| HANDLEBAR |
ONE1 Alloy, MTB AL-153BT, 10° backsweep, 30mm rise, 600mm, 25.4mm |
| GRIPS |
VELO |
| STEM |
ONE1 MAS-MD60368 Alloy, 25.4mm, 15° |
| SADDLE |
SELLE ROYAL, VIVO Junior |
| SEATPOST |
ONE1 Alloy, SP C207, 27.2mm |
| PEDALS |
VP Components 229, Low profile Platform Pedals |
| BB DROP (mm) |
20 |
| SEAT TUBE LENGTH (mm) |
330 |
| EFFECTIVE TOP TUBE LENGTH (mm) |
510 |
| STACK HEIGHT (mm) |
464 |
| REACH (mm) |
365 |
| SEAT TUBE ANGLE |
73 |
| HEAD TUBE ANGLE |
69 |
| REAR CENTER (mm) |
400 |
| HEAD TUBE LENGTH (mm) |
115 |
| WHEELBASE (mm) |
981 |
| STEM (mm) |
35 |
| HANDLEBAR (mm) |
600/R30 |
| CRANKSET (mm) |
140 |
| Seatpost (mm) |
300 |
